Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber

Brand Name : Herzesd

Model Number : HZ-A418E

Place of Origin : Shanghai, China

MOQ : 10

Price : $13-18

Material : PVC+EVA/EPDM foam+Rubber

Volume Resistance : 10e6-10e9 ohm

Max Length : 20m

Width : 2.4m

Thickness : 17mm

Surface Resistance : 1x10E8-10E9 ohms

Max Weight : 100KG

Layer Structure : 3 layers

Surface Material : PVC

Middle Layer : EVA foam

Bottom Layer : Conductive rubber or PE

Standard Size : 610x910x17, 610x450x17

Color Options : Black or black & Yellow

Ground Resistance : 109-1010ohm

Fit Condition : Electronic workshop

Contact Now

Antistatic Rubber PVC Foam Anti Fatigue Mat ESD Anti-Fatigue Floor Mat
Product Specifications
Processing Service Customized Color
Material PVC+EVA/EPDM foam+Rubber
Size Customized Accepted
Color Black or black & Yellow
Volume Resistance 10e6-10e9 ohm
Recommended Work Condition Weight <100KG
Usage Electronic Workshop
Length 20m Max
Width 2.4m
Thickness 17mm
Product Name ESD Anti-fatigue Mat
Product Description

The ESD Anti-fatigue Mat features a 3-layer structure with a PVC surface, EVA foam middle layer, and conductive rubber or PE bottom layer. Designed for electronic components manufacturers and static sensitive areas.

Standard Sizes
  • 610x910x17mm
  • 610x450x17mm
  • Custom sizes available
Technical Specifications
  • Surface resistance: RTT 1x10E8-10E9 ohms (PVC Surface)
  • Color options: Black or black & yellow
  • Maximum length: 20m
  • Width: 2.4m
  • Thickness: 17mm
Available Models
Model Size(mm) Material Surface Resistance Ground Resistance Note
HZ-950 610x460x15 Good Natural Rubber <107ohm <107ohm
HZ-930 610x910x12.5
610x450x12.5		 Rubber Material 108-109ohm 108-109ohm Low cost design
HZ-418S 610x910x17 2 layers: PVC+ Carbamic resin 108-109ohm 109-1010ohm
HZ-418E 610x910x18
610x450x18		 3 layers: PVC + Carbamic resin + Conductive rubber 108-109ohm 109-1010ohm
HZ-418B 610x910x20 3 layers: PVC + EPDM + Conductive rubber 108-109ohm 109-1010ohm Low cost design

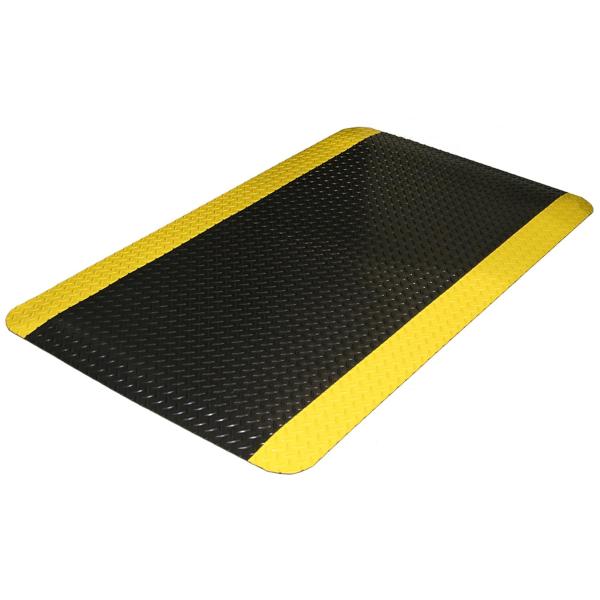

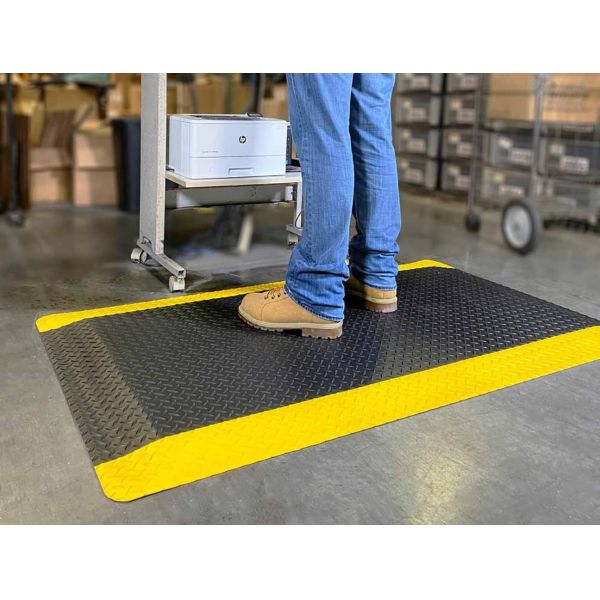

Product Images
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Frequently Asked Questions
1. Why You Need ESD Protection For Your Production Line?

Electronic components or assemblies at risk from electrostatic discharges (ESD) are sensitive elements which can be destroyed or damaged if permitted levels of current or impact energy are exceeded. These typically include semi-conducting components and thick- and thin-film construction elements.

Human handling is a primary cause of damage, as a person can charge several thousand volts just by walking. A discharge becomes noticeable at 2000-3000V, which already exceeds the tolerance level of many ESD components.

Before implementing ESD safe products, establish an ESD safe procedure according to ESD standards IEC 61340 or ANSI S2020 as the foundation of ESD preventive protective work and quality assurance.

2. Why Choose HerzESD?

HerzESD is committed to providing accurate information and solutions, even when it means correcting established but flawed market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing partnerships.

As a solid partner in ESD control, HerzESD works with international collaborators to continuously improve solutions for static electricity management in industrial environments.
